Technology of Blisspack
Beyond physical distance, we add sincerity to every step you take to visit us.
Technology of Blisspack
Filling Technology
• Filling of all contents with viscosities ranging from 1 to 100,000 cps
• Simultaneous filling of six different contents using 12 nozzles
• Heating and melting filling for solid products
• Powder product filling
Opening Technology
• Fold-back type: Open by bending and folding back the opening flap
• Peel-off type: Open by peeling off the lid film
• Tear-off type: Open by tearing a part of the opening flap
Printing Technology
• Printing on forming films: gravure printing and transfer printing (sheet thickness 0.2–0.8mm)
• Printing on lid films: flexographic printing and gravure printing
Film Technology
• Easy-peel lid film: applied to peel-off type products
• Micro-embossed lid film: applied to tear-off type products
• High-barrier film: uses high-performance materials to block or minimize moisture and gas permeation
Opening Method
Peel off
Break-off
Break-off & Peel off
Tear off
Blister Automatic Packaging System
Fully Automatic Blister Filling and Packaging System
Blister packaging equipment developed with proprietary individual drive technology
(Patent No. 10-0585235)
Pre-printing on forming film and molding containers according to the print
Half-slit technology for fold-back type opening
Simultaneous filling technology using 12 nozzles
Mold Technology
Heat sealing & cutting mold technology
Cutting system using a wooden mold
Low mold investment cost: 1/5 to 1/10 of competitors’ mold cost, with reduced mold production time (within 3 weeks)

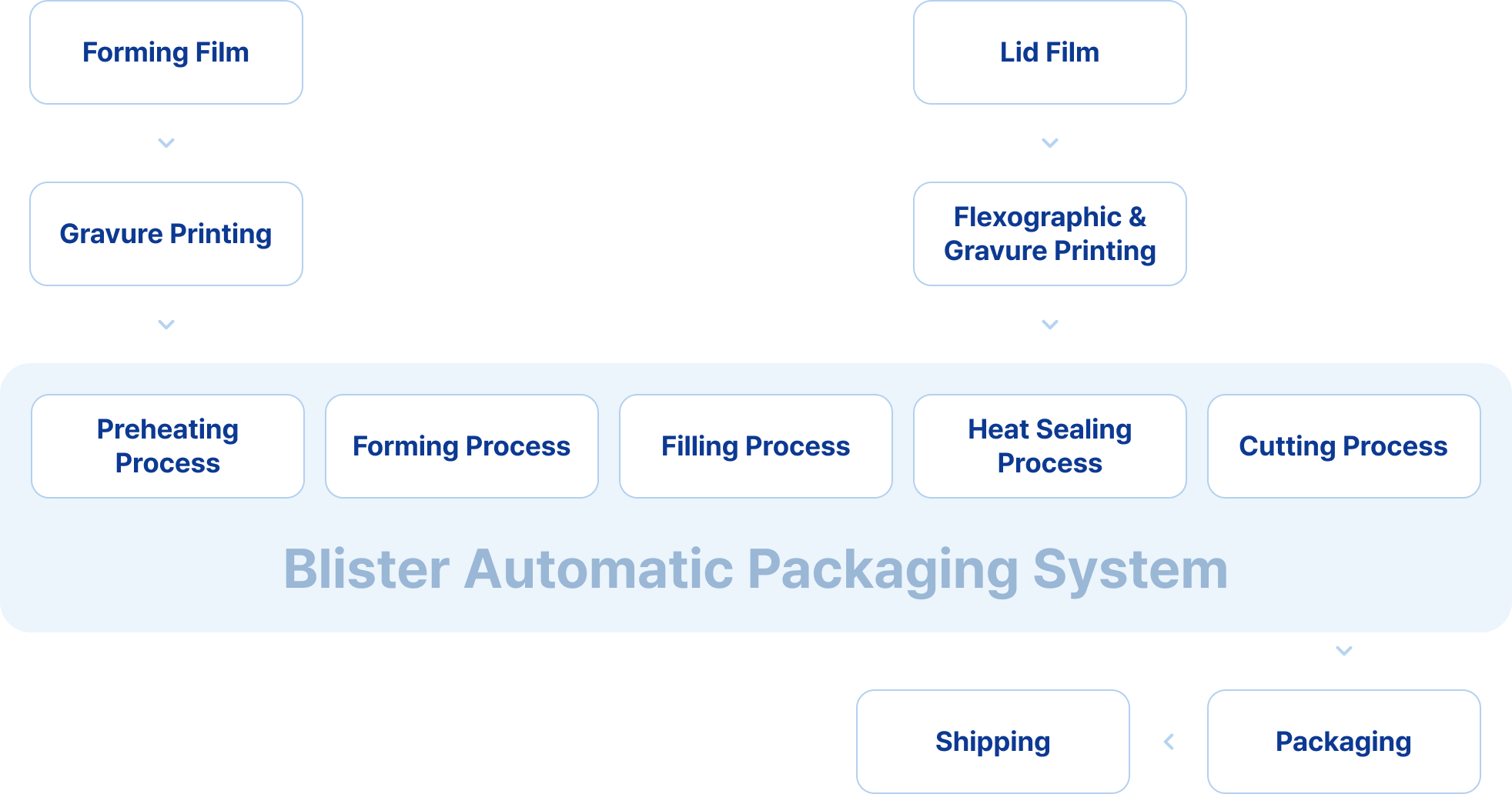

Production Process
Media
Blister machine
Syringe filling machine
Re-sealable blister

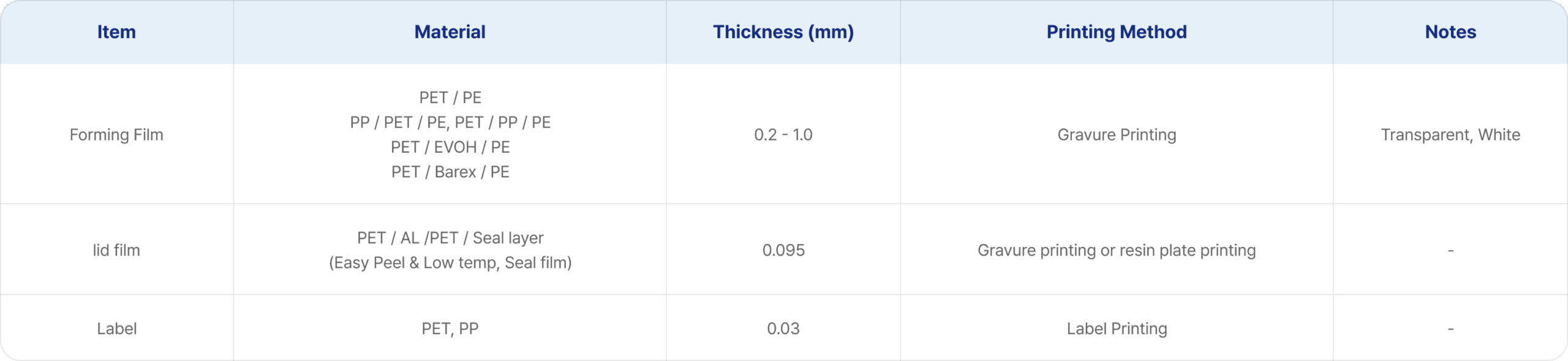

Packaging Materials

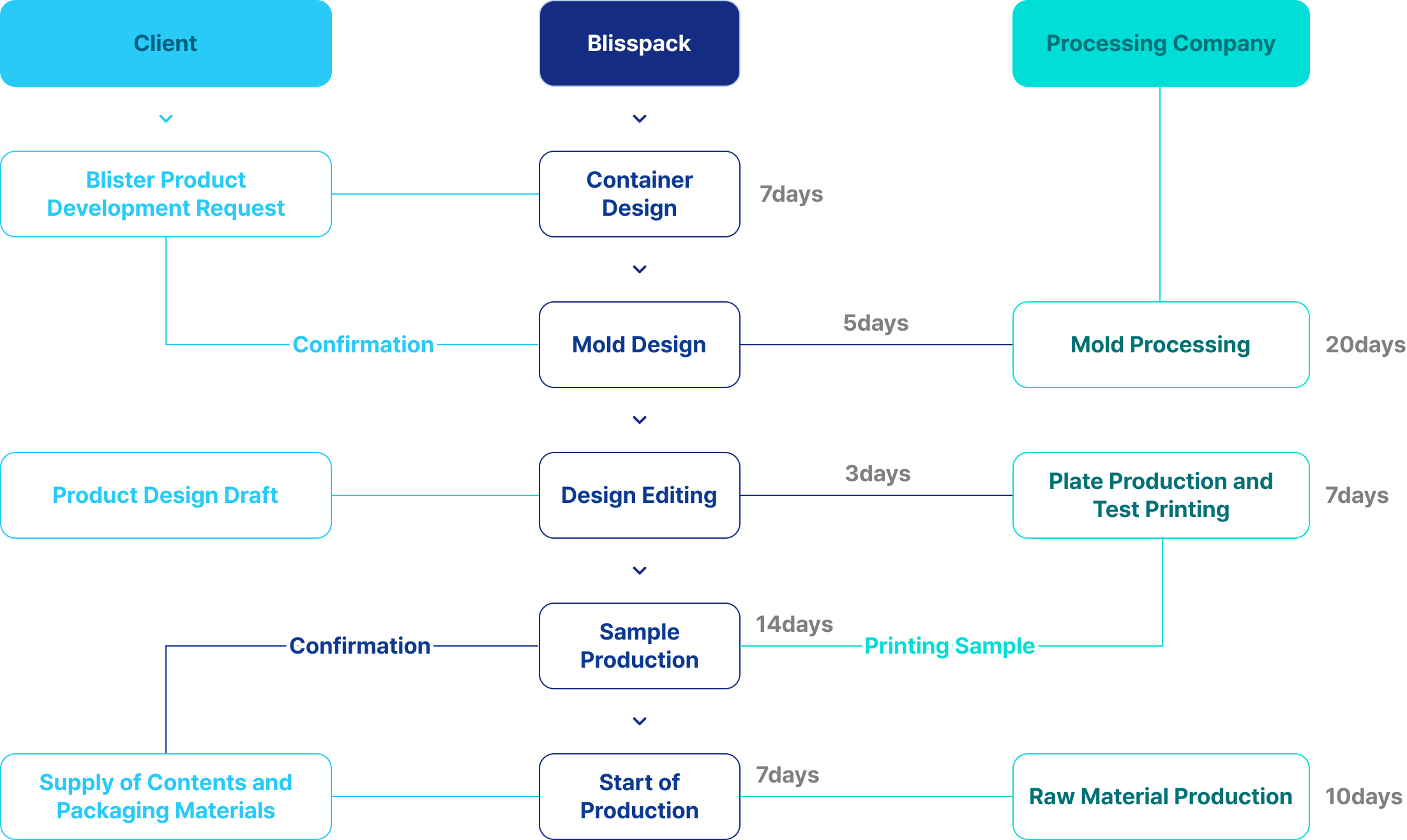

Development Schedule
